BL-OTDR6000 OTDR Platform

BL-OTDR6000 series are the OTDR platform, which are specially designed for FTTx / WAN applications and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting. It is convenient and accurate for auto/manual testing, multi-wavelength testing and multi-functional analysis.


Specifications

Parameters	Specification

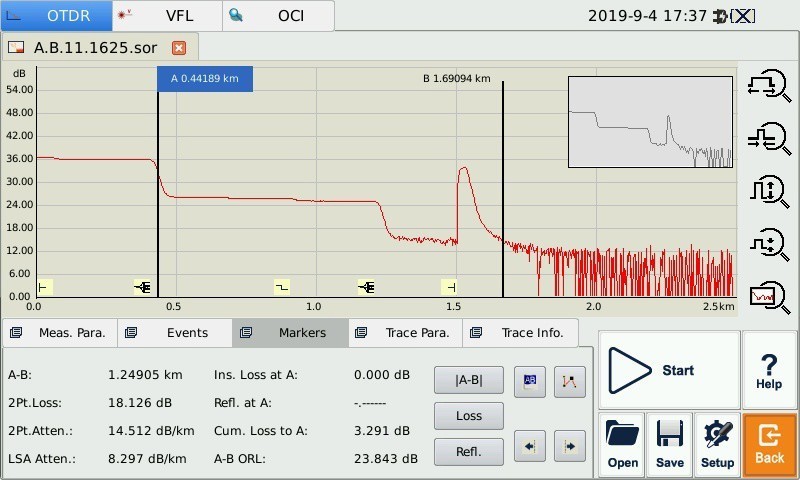

OTDR Module	Wavelength (±20nm)	Dynamic Range (dB)(1)	Event Dead Zone (m)(2)	Attenuation Dead Zone (m)(2)
BL-OTDR6000-S2A	1310/1550	38/37	0.8	4
BL-OTDR6000-S2B	1310/1550	45/43	0.8	4
BL-OTDR6000-S2C	1310/1550	50/48	0.8	4
BL-OTDR6000-S3A-PL	1310/1550/1625	43/41/40	0.8	4
BL-OTDR6000-S3B	1310/1550/1650	42/40/39	0.8	4
BL-OTDR6000-SM4A	850/1300/1310/1550	23/28/38/36	1	4.5/4.5/4/4
Selectable Range	SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240km MM: 1.3, 2.5, 5, 10, 20, 40km
Pulse Width	SM: 5ns,10ns, 30ns, 100ns, 300ns,1µs, 2.5µs,10µs, 20µs MM: 5ns, 10ns, 30ns, 1µs, 2.5µs
Averaging Time	Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s
Emitter Type	LD
Connector	FC/PC (Interchangeable SC, ST and LC )
Distance Measure Accuracy	±(1m + 10-5×distance + sampling spacing)
Attenuation Detect Accuracy	±0.05 dB/dB
Reflection Detect Accuracy	±4 dB
Visible Laser Source	Output Power:≥-3dBm; MOD Frequency: 1Hz; Detecting Range: 5km

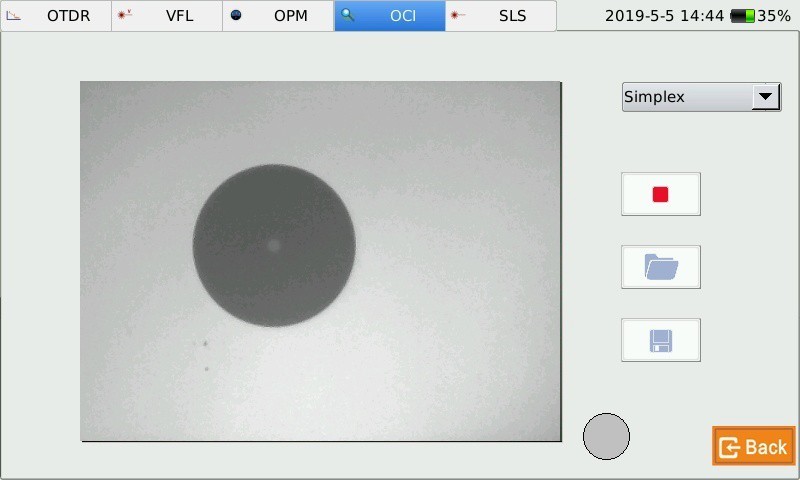

MCI100 Optical Connector Inspector Module (Optional)
Field of View	400μm×300μm
Resolution	≤1.5µm
Focusing	Manual Focus
Microscope Dimensions	Ø32×175mm

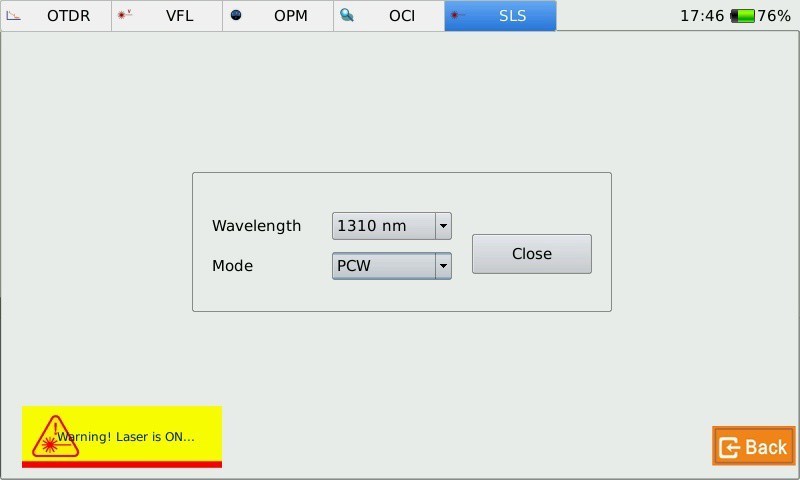

OLS1000 Stabilized Laser Source (Optional)
Wavelength (±20nm)	Same as OTDR’s
Output Power	≥-7dBm

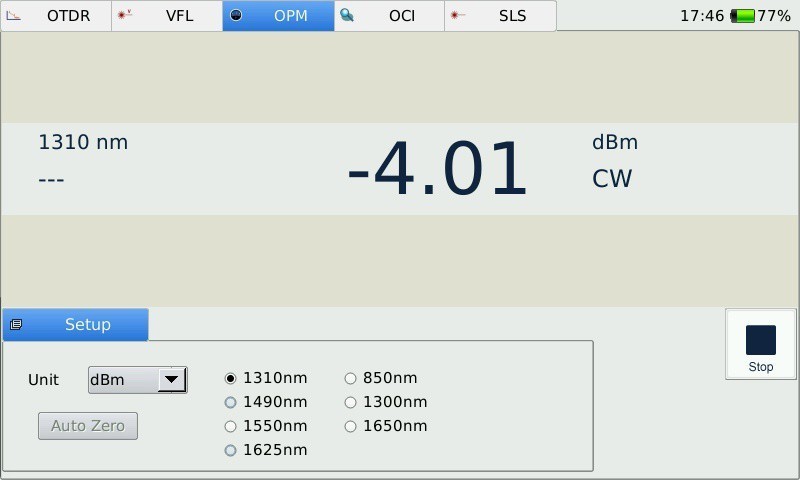

OPM1000 Normal Power Meter Module (Optional)
Calibrated Wavelength	850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm
Measurement Range	-70dBm - +6dBm (-60dBm - +6dBm @ 850nm)
Detector Type	InGaAs
Display Resolution	0.01dB
Accuracy	± 5% ± 0.01nW (±0.5dB@850nm)
Other
Display	7 inch TFT Touch Screen (800×480)
Connectivity	USB×2; 10/100Mbit/s RJ-45×1
Memory	8GB
Power Supply	Rechargeable Li-Ion Battery/AC Adapter
Battery Life	10 hours continuous operation
Operating Temperature	-20°C~+50°C
Storage Temperature	-40°C~+60°C
Humidity	0~95% (Non-Condensing)
Dimensions	290(L)×175(W)×75(H)mm
Weight	2.1kg

*Specifications subject to change without notice

Note:
(1) Dynamic range measurement at 20µs pulse width and 180s averaging time
(2) Dead Zone measurement at 0.6Km and reflection <-45dB; EDZ measurement at 5ns, ADZ measurement at 10ns.


Standard Accessories

No.	Product	Unit	Quantity
1	BL-OTDR6000 Host	set	1
2	Li-Ion Battery	piece	1
3	USB Cable	piece	1
4	USB Disk (User Manual)	piece	1
5	Carrying Case	piece	1

Optional Accessories

No.	Product	Unit	Quantity
1	SC Adapter	piece	1
2	ST Adapter	piece	1
3	MCI Test Handle	piece	1
4	1.25mm Universal APC Male Adapter (Suitable for MCI Test Handle)	piece	1
5	2.5mm Universal APC Male Adapter (Suitable for MCI Test Handle)	piece	1
6	SC/APC Female Adapter (Suitable for MCI Test Handle)	piece	1
7	FC/APC Female Adapter (Suitable for MCI Test Handle)	piece	1
8	LC/APC Female Adapter (Suitable for MCI Test Handle)	piece	1

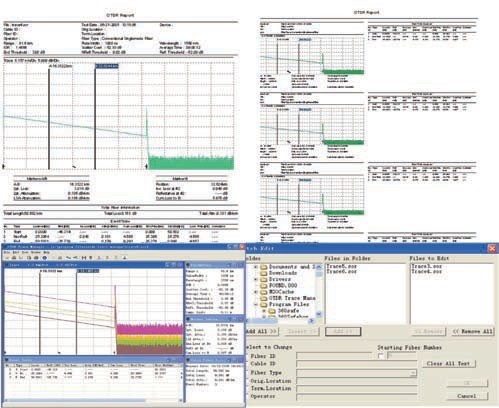

9	Link Image Software	piece	1

Ordering Information
Main Equipment Ordering Information:

Part number	Product name	Description
BL-OTDR6000-S2A	OTDR Platform	SM, wavelength: 1310/1550nm, dynamic Range: 38/37dB, FC/UPC port; including VFL function
BL-OTDR6000-S2B	OTDR Platform	SM, wavelength: 1310/1550nm, dynamic Range: 45/43dB, FC/UPC port; including VFL function
BL-OTDR6000-S2C	OTDR Platform	SM, wavelength: 1310/1550nm, dynamic Range: 50/48dB, FC/UPC port; including VFL function
BL-OTDR6000-S3A-PL	OTDR Platform	SM, wavelength: 1310/1550/1625nm, dynamic Range: 43/41/40dB, FC/UPC port; including VFL function; In-Line test and through Splitter test
BL-OTDR6000-S3B	OTDR Platform	SM, wavelength: 1310/1550/1650nm, dynamic Range: 42/40/39dB, FC/UPC port; including VFL function
BL-OTDR6000-SM4A	OTDR Platform	SM, wavelength: 850/1300/1310/1550nm, dynamic Range: 23/28/38/36dB, FC/UPC port; including VFL function


Optional Accessories Ordering Information:

Part number	Product name	Description
BL-OTDR6000-AD-SC	Adapter	SC adapter; Suitable for BL-OTDR6000 optical port
BL-OTDR6000-AD-ST	Adapter	ST adapter; Suitable for BL-OTDR6000 optical port
BL-OTDR6000-LIS	Link Image Software	Processing link image; Suitable for BL-OTDR6000
BL-OTDR6000-MCI-HD	MCI Test Handle	2.5mm universal UPC male and female, 1.25mm universal UPC male, LC/UPC female and other adapters; Suitable for BL-OTDR6000-H high configuration series
BL-OTDR6000-MCI-A1.25-M	Adapter	1.25mm universal APC male adapter; Suitable for BL-OTDR6000-MCI-HD test handle
BL-OTDR6000-MCI-A2.5-M	Adapter	2.5mm universal APC male adapter; Suitable for BL-OTDR6000-MCI-HD test handle
BL-OTDR6000-MCI-ASC	Adapter	SC/APC female adapter; Suitable for BL-OTDR6000-MCI-HD test handle
BL-OTDR6000-MCI-AFC	Adapter	FC/APC female adapter; Suitable for BL-OTDR6000-MCI-HD test handle
BL-OTDR6000-MCI-ALC	Adapter	LC/APC female adapter; Suitable for BL-OTDR6000-MCI-HD test handle
BL-OTDR6000-L	Light Source Module	Light Source Module; If need this function, the model of OTDR Platform should add “-L”
BL-OTDR6000-P	Optical Power Meter Module	Optical Power Meter Module; If need this function, the model of OTDR Platform should add “-P”
BL-OTDR6000-M	MCI Module	Optical Connector Inspector Module. If need this function, the model of OTDR Platform should add “-M”
